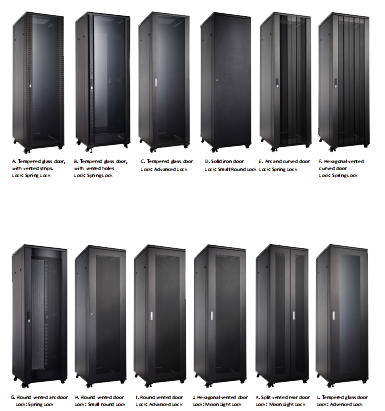

Optional doors

Various doors optional: glass,vented or solid doors.

Easy Transportation

It can be shipped in knock-down packing, which will save 2/3 space than assembled packing.

More space for cable management

Vertical installation metal management in 800mm wide rack provide more space for network cable management.

Technical Features
Material SPCC
Color RAL7035 or RAL9005
Protection category IP20 to IEC60 529
Maximum Static Load up to 800KGS
Finish Electrostatic powder paint
Packaging Assembled or disassembled
Complicance CE,RoHS Certified
Standard Comply with ANSI/EIA-ECA-310-E; DIN41491:PART1.IEC297-2; DIN41494:PART7; GB/T3047.2-92 standard;compatible with ETSI standard
Supply includes - Front door and rear door
- Side panel
- Vertical rail
- Vertical Cable Manager(for 800mm width rack)
- Top cover
- Enclosure frame(horizantal beam and door frame) - Bottom panel - Levelling feet
- 2’’ Castor

Optional doors

Vertical cable management

Fan tray
