Highlights
Save space
1/3 assembled original volume when flat-packed.
Optional doors
Toughened glass or vented door is optional,which is at your choice.
Easy installation
Extremely easy for assembled,it only takes 5 minutes for a skillful person to assemble a whole cabinet
Big door-opening angle
Turning angle of front door is over 180 degrees.
Technical Features
| Material | SPCC | |||
| Color | RAL7035 or RAL9005 | |||
| Protection category | IP20 to IEC60 529 | |||
| Maximum Static Load | 40KGS | |||
| Finish | Electrostatic powder paint | |||
| Packaging | Assembled or disassembled | |||
| Complicance | CE,RoHS Certified | |||
| Standard |
Comply with ANSI/EIA-ECA-310-E; DIN41491:PART1.IEC297-2; DIN41494:PART7; GB/T3047.2-92 standard;compatible with ETSI standard |
|||
| Supply includes |
- Front door and rear panel - Side panel - Vertical rail - Top cover - Bottom panel - Enclosure frame(horizantal beam and door frame) - Mounting bracket - L-shaped bracket
|
|||

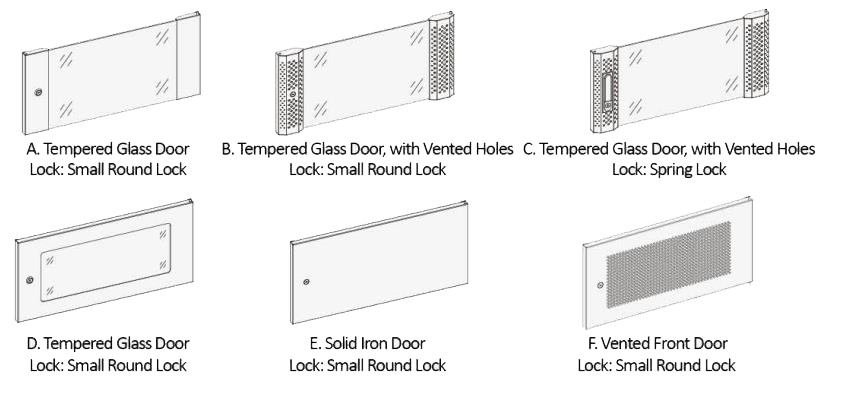

Optional doors
